BAINBRIDGE ROTARY SWEEPER

Before & After Use.

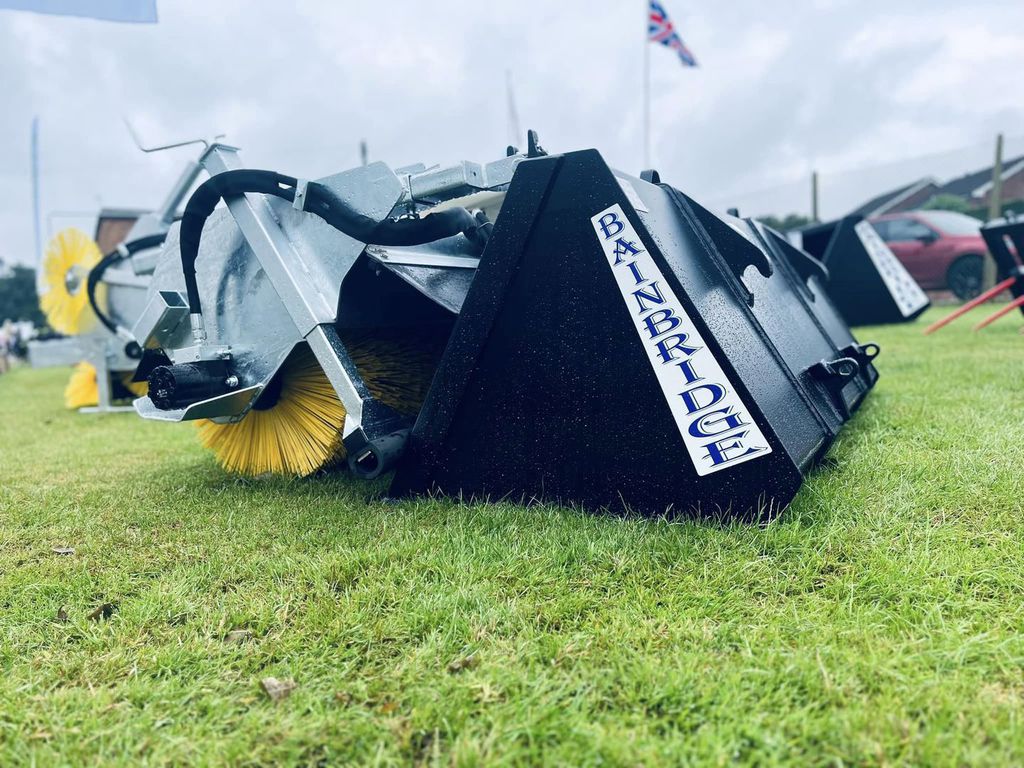

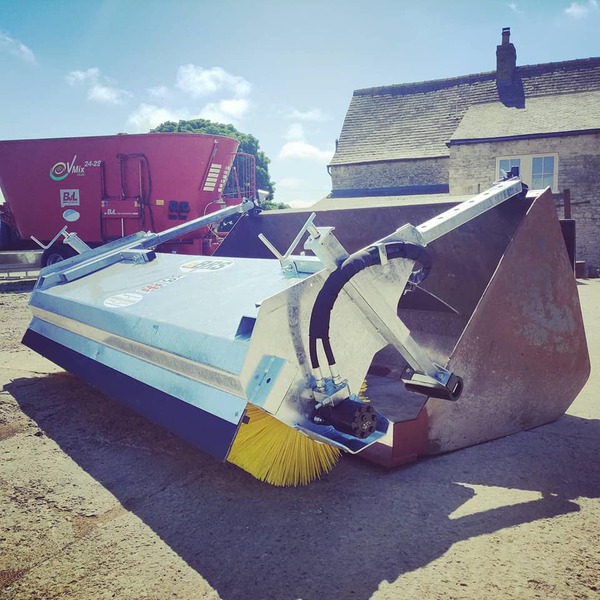

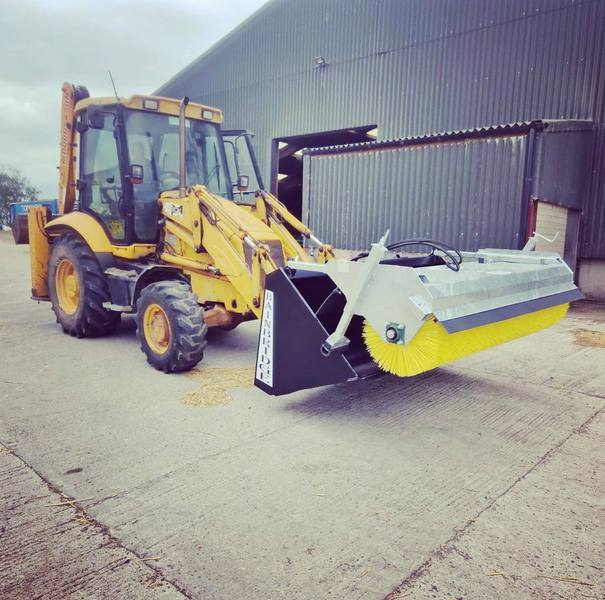

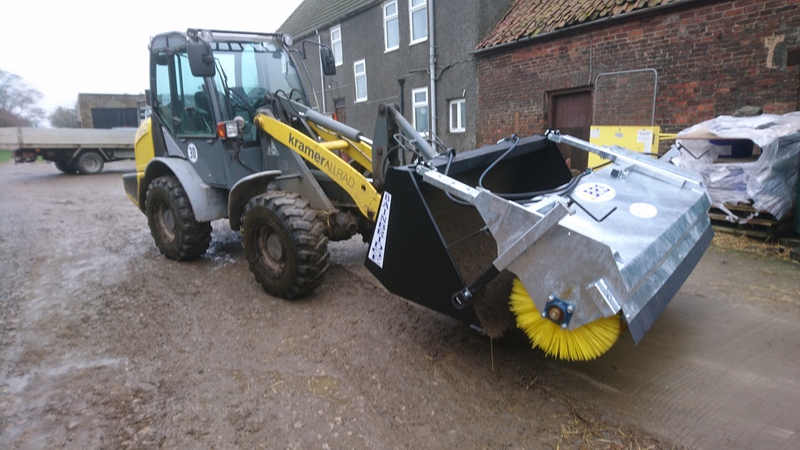

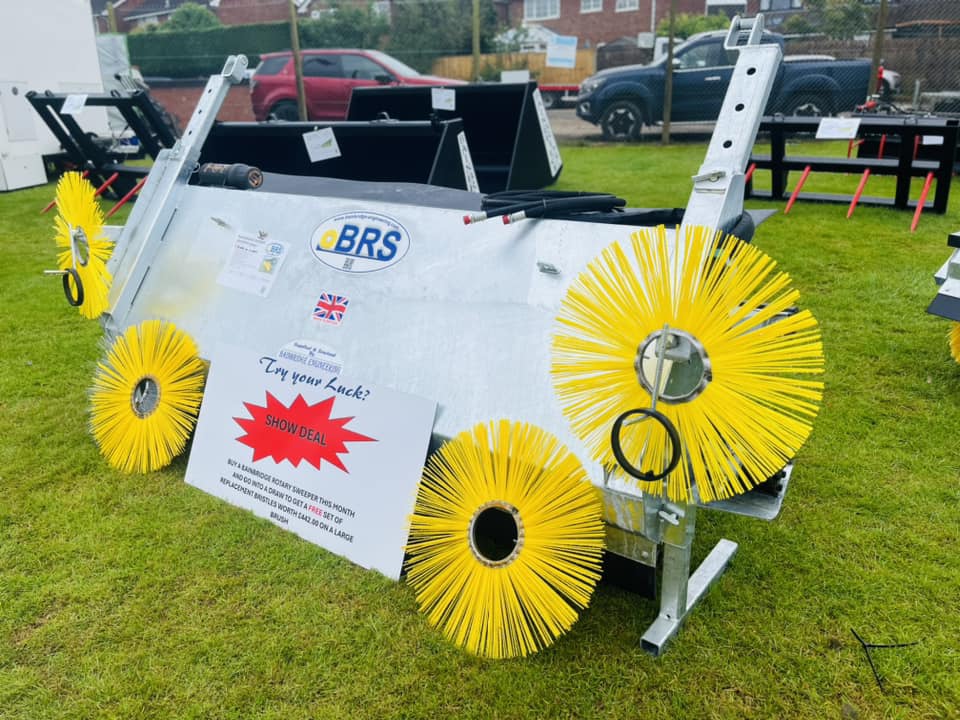

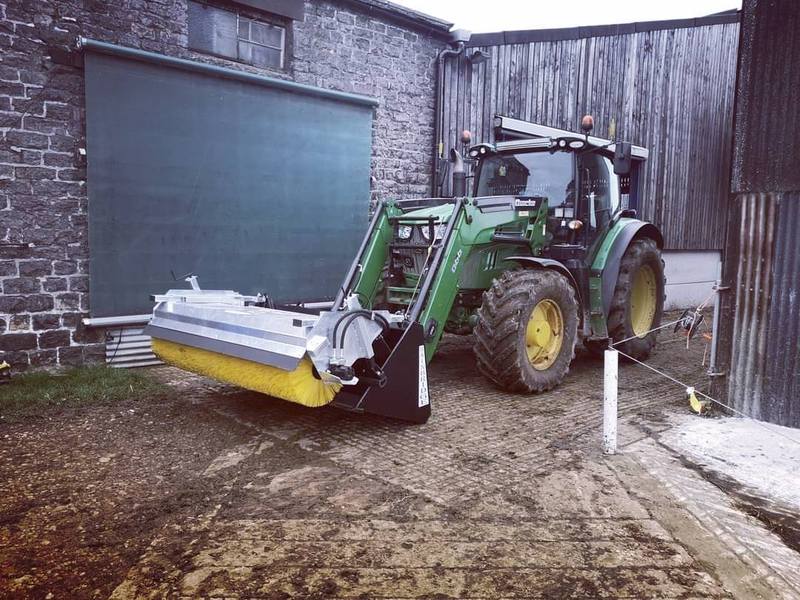

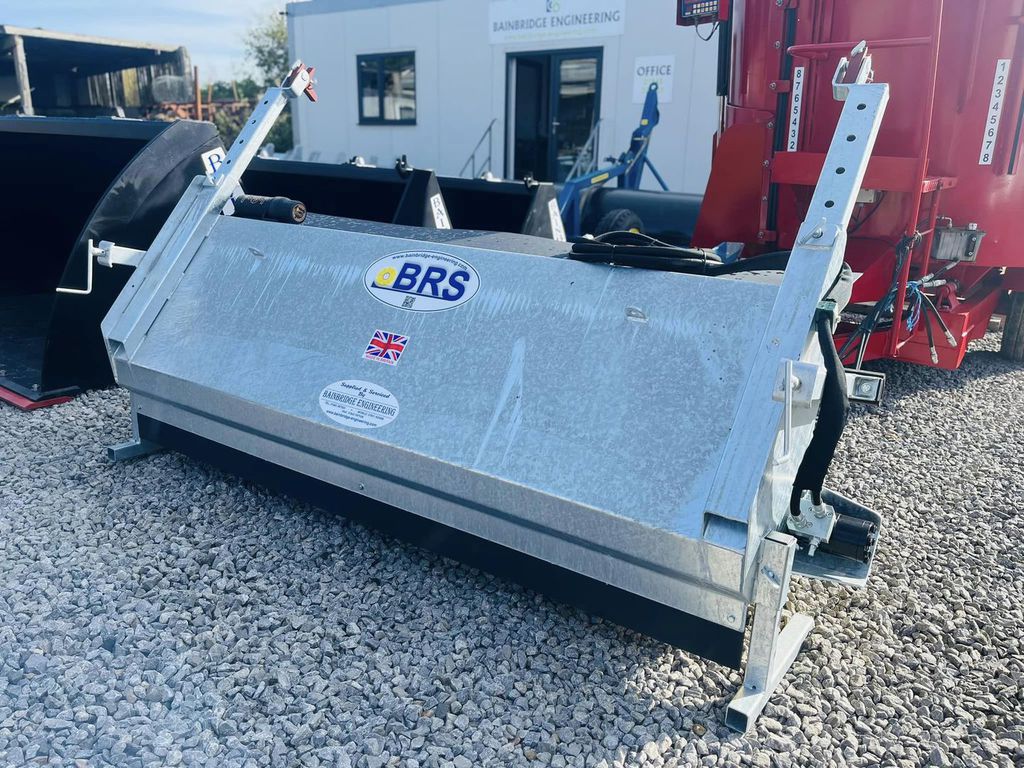

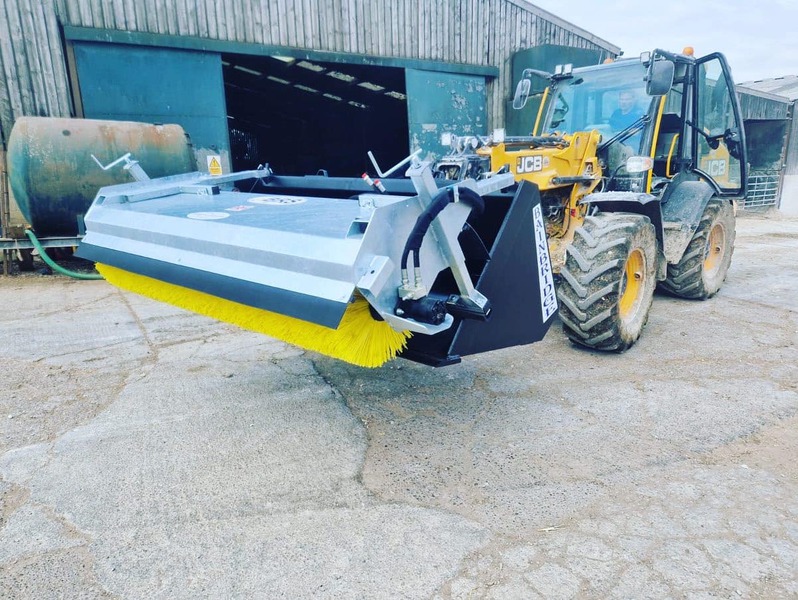

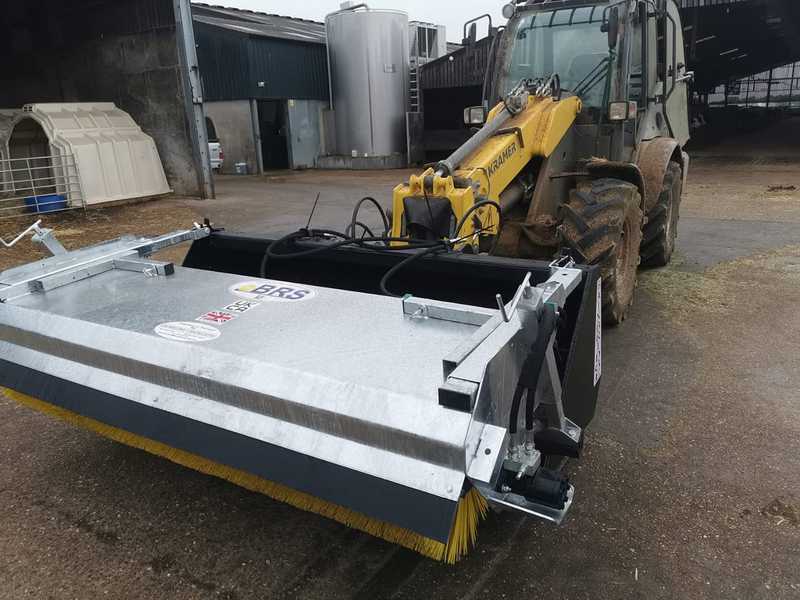

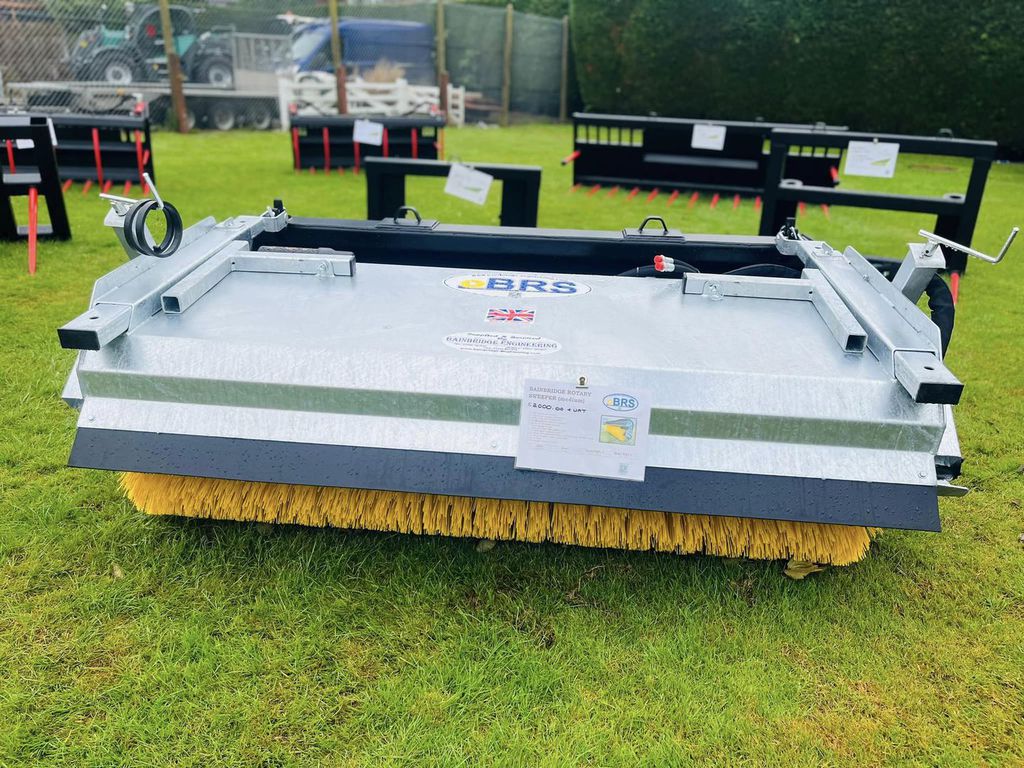

This powerful bucket mounted sweeper converts a material handling bucket into a versatile sweeper collector unit.



3 sweeper sizes are available to suit your buckets width.

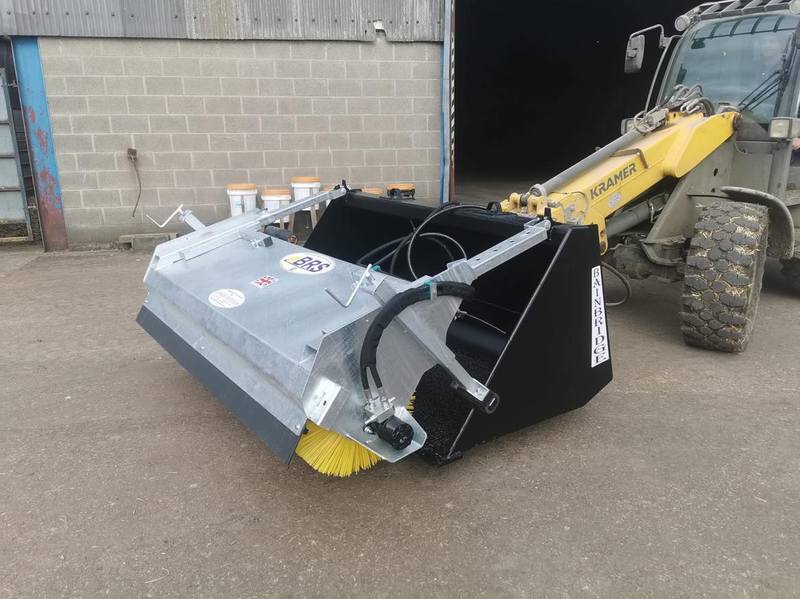

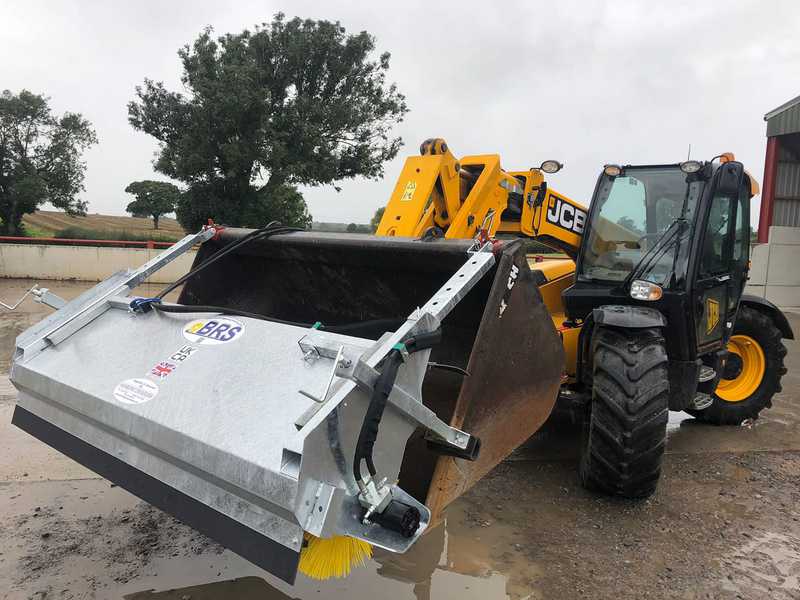

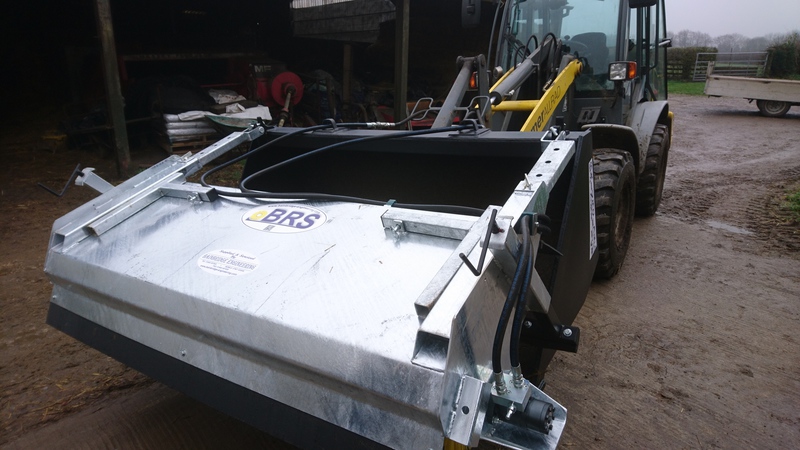

Pick up lugs are welded to the bucket and the sweeper connected using a simple 'quick attach system'.  Sweeping and collection is best carried out in reverse.



The high torque hydraulic drive is reversible and fitted with a pressure relief valve to protect motor seals and key wedges.

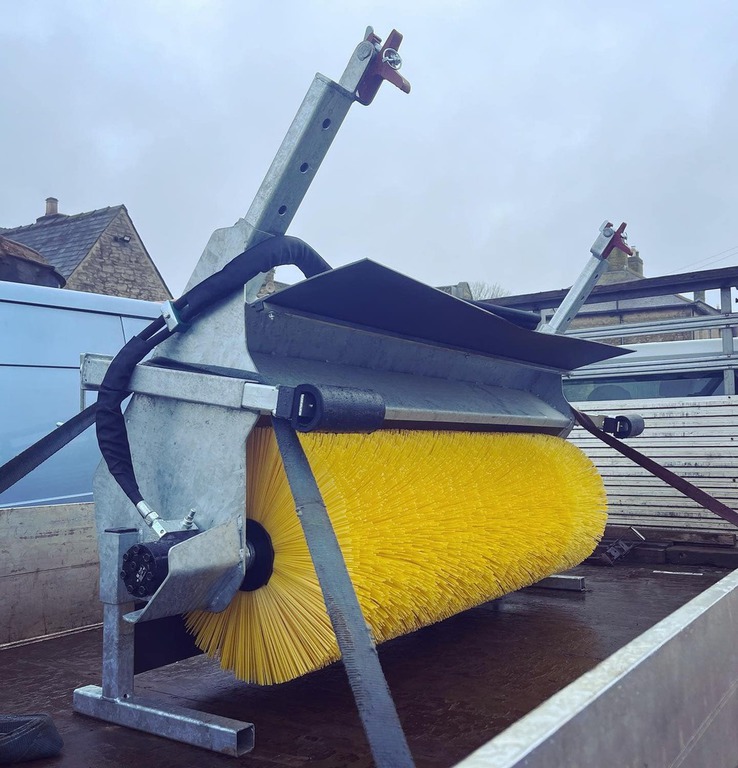

Buffers are used to reduce bucket edge damage, noise and vibration. The unit has integrated parking stands for storage and servicing when not in use.



MODEL

BUCKET WIDTH

FT

BUCKET WIDTH

METERS

PRICE

SMALL 6' - 6'6 1.83- 1.98m

£1900.00+ VAT

MEDIUM 6'6 - 7'3 1.98 - 2.2m £2000.00 + VAT
LARGE 7'3 - 8' 2.2 - 2.44m  £2100.00 + VAT



HYDRAULIC FITTING COST

Standard  Female ( part no. 4501) £7.28 Male ( part no. 4497) £3.80  14.00
Flat top 1/2" Female ( part no. 4503) £22.50 Male ( part no. 4502) £11.00 35.00
3/4 flat top  Female ( part no. 4509) £31.88 Male (part no. 4507) £20.23 (Bobcat) 55.00



  • High quality galvanizing
  • High torque cushion drive motor
  • Heavy duty steel construction
  • Single hydraulic service operation
  • Quick fit mounting system

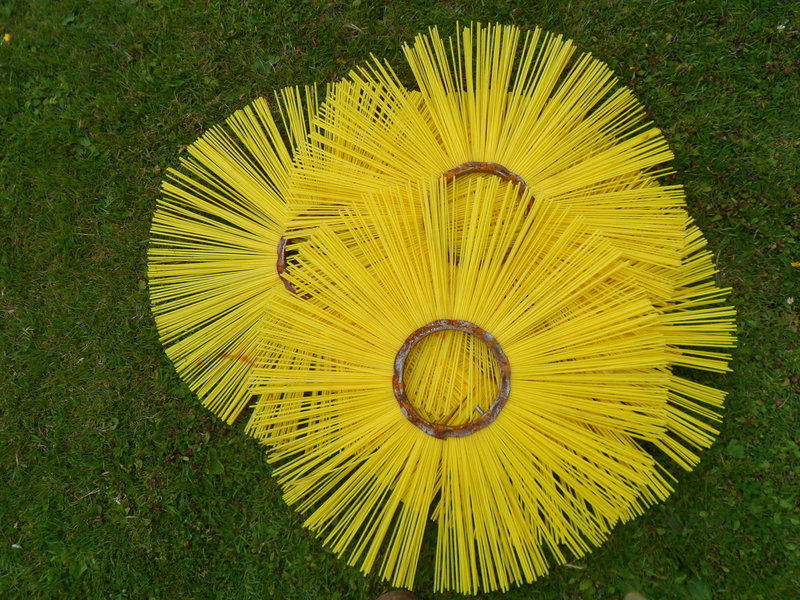

  • Quick change brush
  • Heavy duty jack legs rubber stops
  • Bi-directional hydraulic motor
  • Relief valve to protect motor and key wedge
  • Choice of bristles - poly or poly/wire mix (wire not suitable if you have livestock)

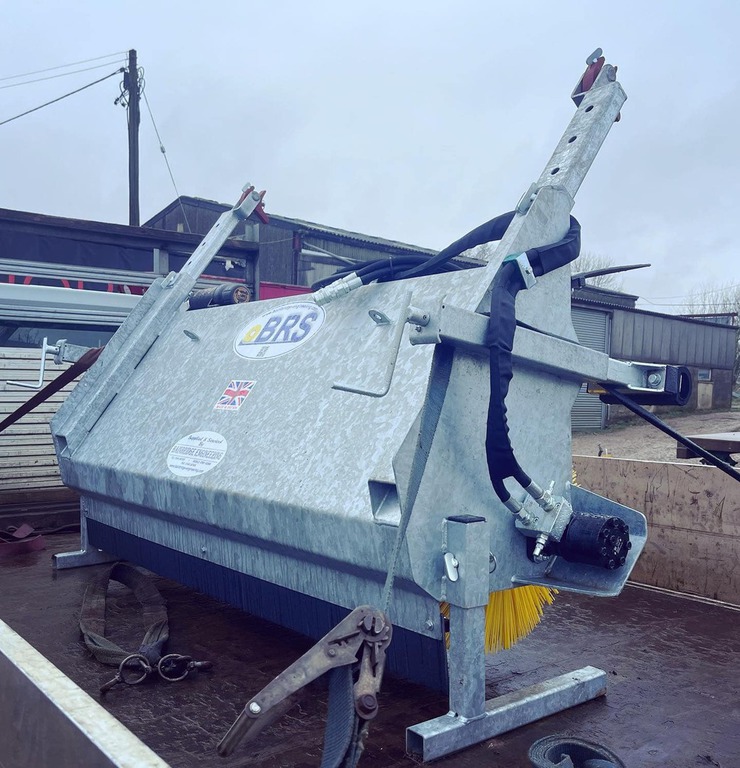

  • Park stand
  • Sweeping is best in reverse



USE  HEAVY - EXTRA DUTY SWEEPING AND COLLECTION
Mounting  Quick fit system. Pick up lugs welded to customer bucket
Power Source Hydraulic - 40 - 70 litres / min flow rate @140 bar
Brush Adjustment Heavy duty jack legs with rubber buffer stops

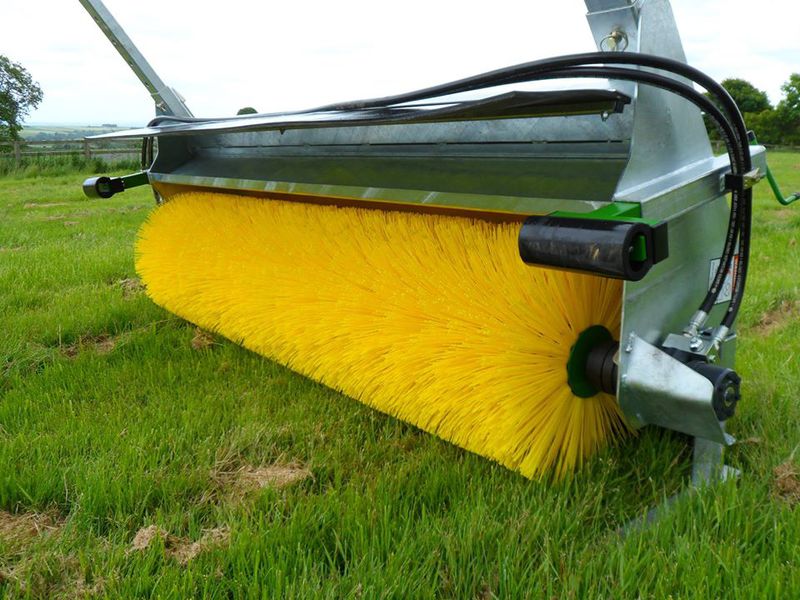

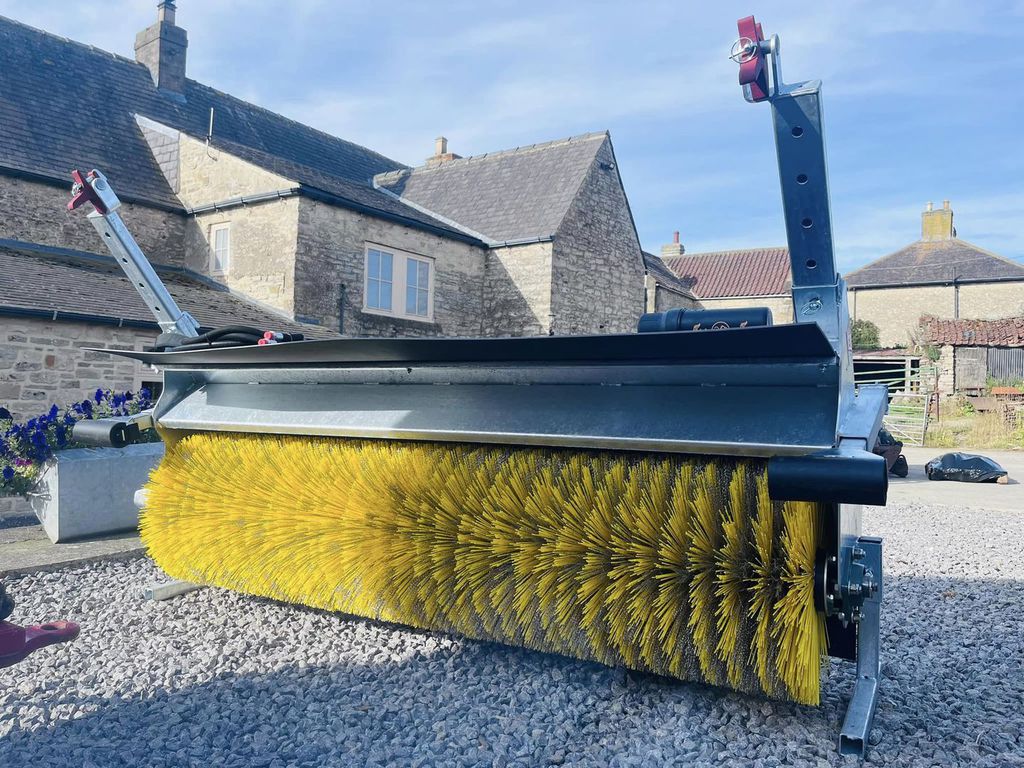

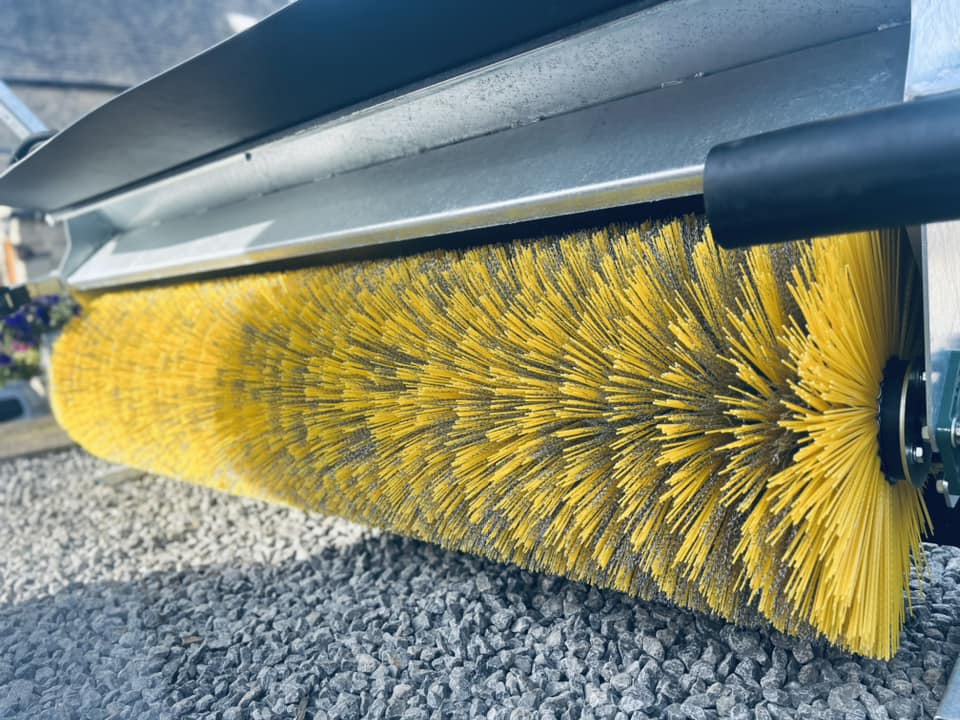

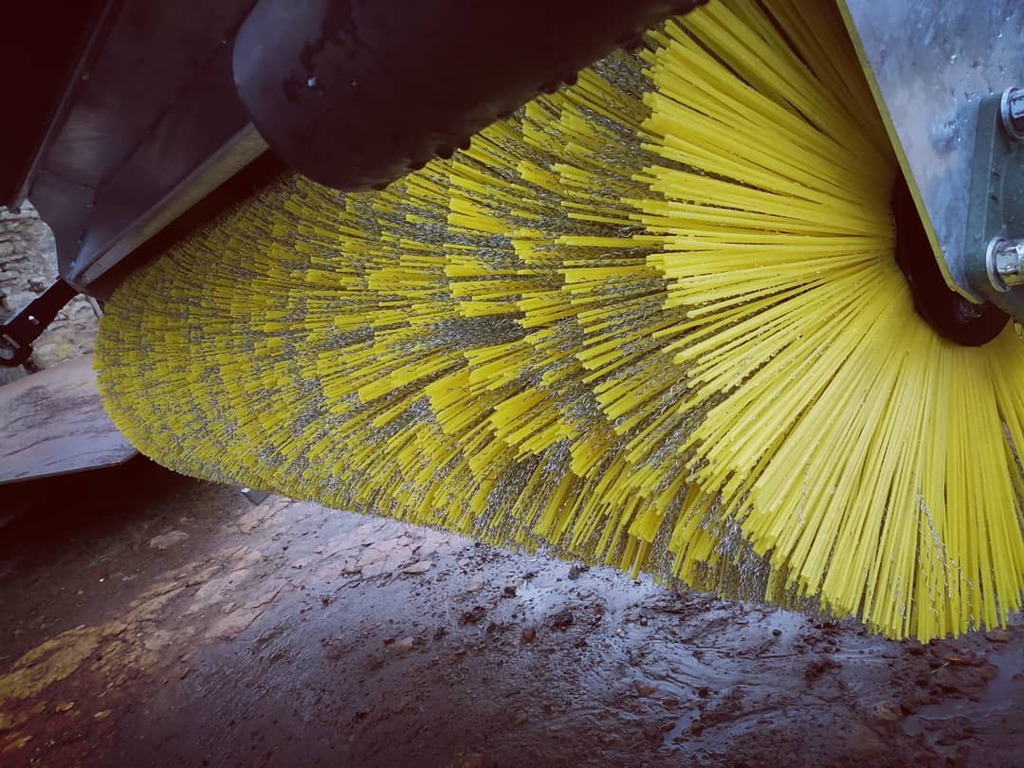

Brush Spec 560mm diameter: Poly or poly / wire mix
Drive  High torque motor, with relief valve prodection and cushion drive. Bi - directional drive

FITTING YOUR BRS TO YOUR BUCKET

  1.  Fit your BRS mounting stands
  2. Weld on the mounting lugs
  3. 200/250mm should be the distance from the centre of the rota to the edge of your bucket
  4. That's it - your unit is complete.
